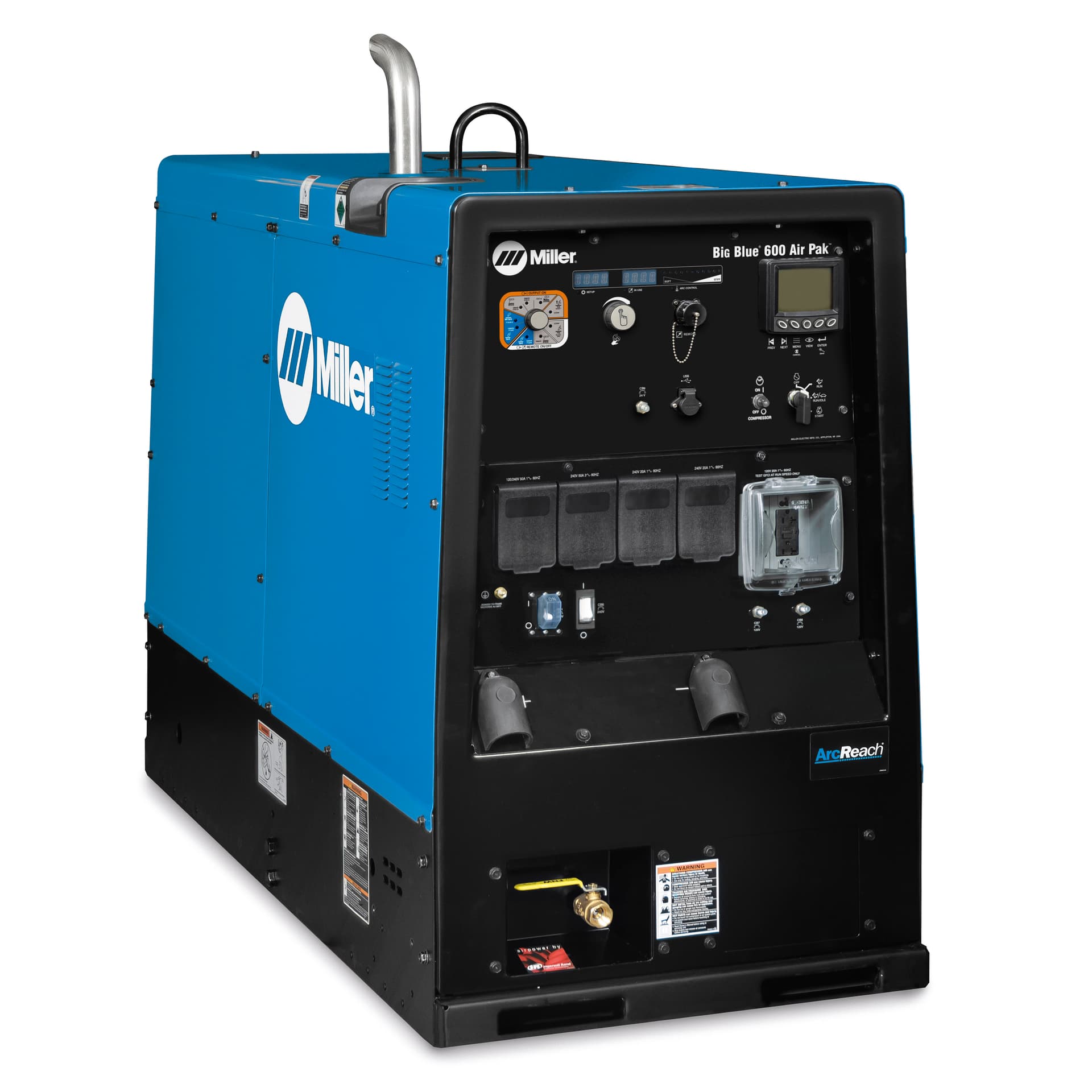

Big Blue® 600 Air Pak™

The Big Blue® 600 Air Pak™ is an engine‑driven, multi‑process welding system that also provides carbon‑arc gouging, auxiliary power, and a built‑in air compressor for field‑based work.

Key Features

• Dynamic DIG™ algorithm for smoother short‑clearing current.
• ArcReach® technology with wireless interface control for remote setting adjustments.
• Integrated 30,000‑hour Ingersoll Rand rotary‑screw air compressor with independent on/off control.
• Heavy‑duty DEUTZ T4F diesel engine with electronic display (fuel level, engine hours, coolant temp, oil pressure, battery volts, RPMs).
• Industrial USB port for software updates and diagnostic log retrieval.
• Multiple mounting options: base, truck‑mount, and wireless interface control configurations.

Specifications

• Amperage Range: 20 A – 600 A
• Max Open Circuit Voltage: 92 VDC
• Horsepower: 65.7 hp
• Fuel Type: Diesel, 25 gal tank
• Net Weight: 2040 lb
• Dimensions (W × H × L): 28.5 in × 46 in × 69.5 in
• Compressor Output: 60 cfm (idle 40 cfm) at 100 psig, 100 % duty cycle
• Engine Brand: Deutz® (T4F compliance)
• Warranty: 3 years (Miller True Blue Warranty)

Applications

• Pipe, mining, construction, and fabrication projects.
• Field welding, carbon‑arc gouging, and plasma cutting.
• Providing auxiliary power (12 kW single‑phase, 20 kW three‑phase) and compressed air on job sites.
• Remote operation via ArcReach® stick/TIG remote or smart feeder accessories.
