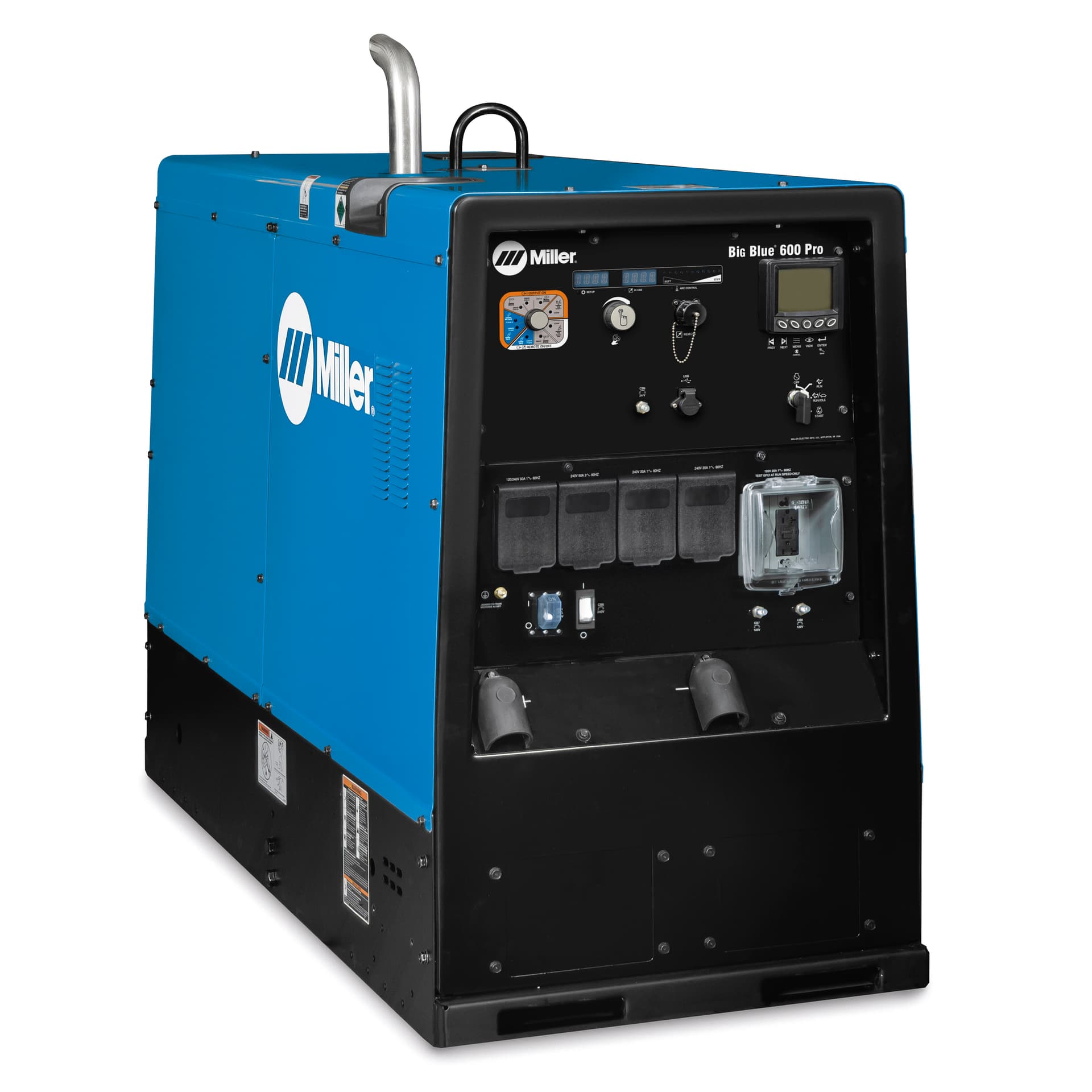

Big Blue® 600 Pro (Kubota)

The EPA Tier 4 Final 600 amp engine‑driven Big Blue® 600 Pro (Kubota) delivers high‑output welding, gouging and auxiliary power for demanding mobile fabrication and MRO jobs.

Key Features

• Quiet operation for improved site safety and communication.
• Digital meters with SunVision™ for clear read‑outs in any lighting.
• Electronic engine display showing fuel level, engine hours, coolant temperature, oil pressure, battery volts and RPMs.
• Industrial USB port for software updates and machine log retrieval.
• Dynamic DIG™ for adaptive short‑clearing current.
• Simple‑to‑Set controls – select process and weld.
• Heavy‑duty low‑speed Kubota V2403 diesel engine with T4F compliance.
• HD powder‑coat finish with zinc‑rich primer for rust resistance.
• Advanced professional features: Adaptive Hot Start™, Infinite arc control, Lift‑Arc™ TIG, Low OCV Stick (VRD), Auto Remote Sense™ (ARS).

Specifications

• Amperage Range: 20 A – 600 A
• Rated Output: 500 A @ 40 V (100 % duty), 550 A @ 42 V (60 % duty), 600 A @ 42 V (40 % duty)
• Fuel Type: Diesel (25 gal tank)
• Horsepower: 48.9 hp
• Weight: 1,750 lb
• Dimensions (Net): 28.5 in (W) × 46 in (H) × 69.5 in (L)
• Engine Brand: Kubota® T4F diesel
• Auxiliary Power (Single‑Phase Continuous): 12 kW
• Auxiliary Power (Three‑Phase Continuous): 20 kW
• Sound Rating: Idle 65.9 dB, Weld 74.3 dB
• Portability: Fork pockets, lift eye (standard), optional trailer

Applications

• Mobile fabrication & MRO
• Process pipe work
• Construction & fabrication
• Mining, railcar, pipe industries
