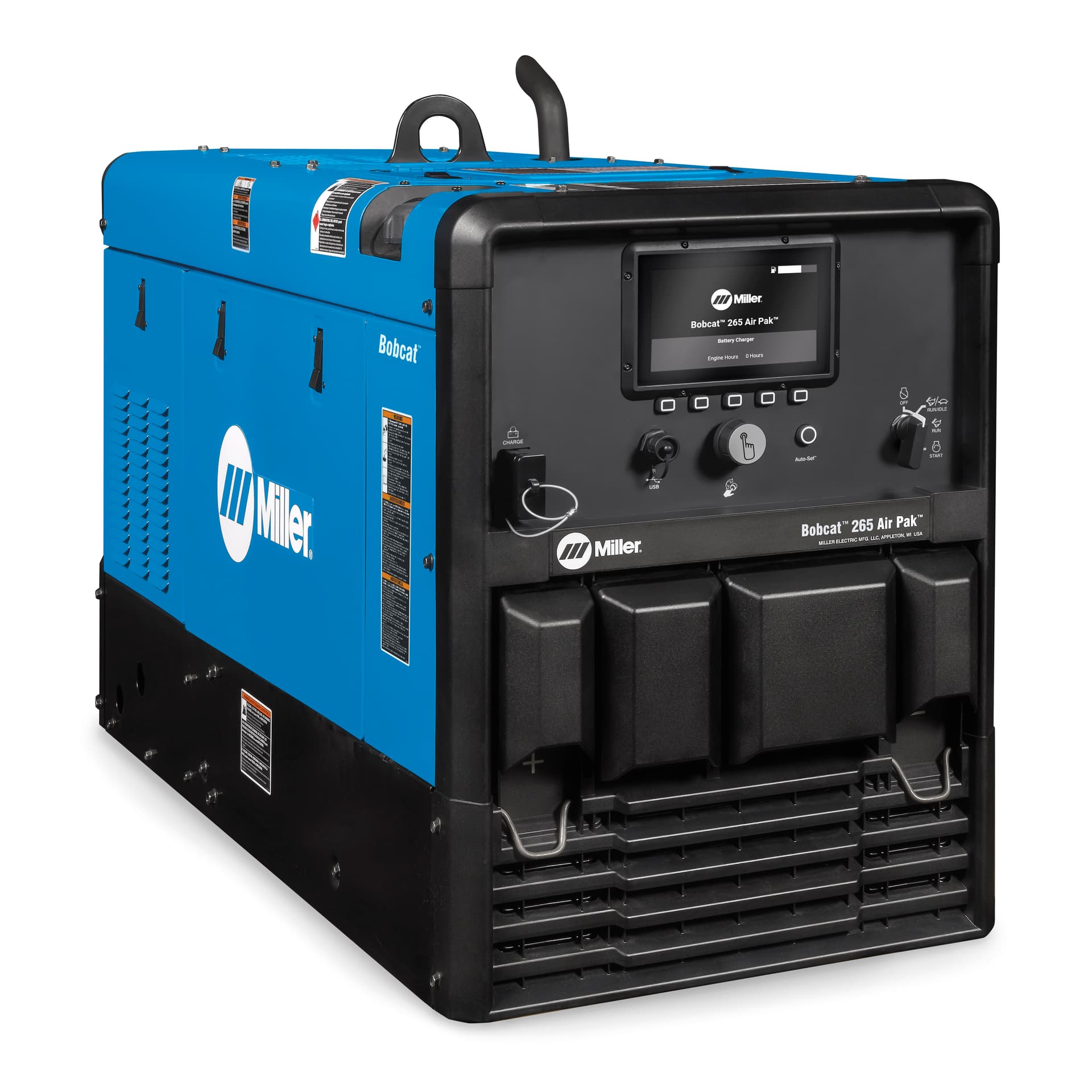

Bobcat™ 265 Air Pak™ w/Battery Charge/Crank Assist

Powerful all‑in‑one engine‑driven tool designed for repair and construction, delivering multiprocess weld quality along with auxiliary power, an on‑board air compressor and battery charge/crank assist.

Key Features

• Easy to Use digital interface for quick setup
• Exceptional arc performance with easy starts and low spatter
• Quiet rotary‑screw compressor (30 CFM at 80‑160 psi, 100% duty)
• Separate weld and auxiliary power for full auxiliary output at any setting
• Battery Charge (10‑150 A) and Crank Assist (up to 300 A, 12/24 V)
• Easy maintenance with intuitive design

Specifications

• Amperage Range: 20 A – 265 A
• Input Voltage: 107 VDC max open‑circuit
• Fuel Type / Tank: Gasoline, 11 gal
• Horsepower: 27 hp
• Compressor Flow: 30 CFM (0.85 m³/min) at 3,600 rpm
• Compressor Pressure: 80‑160 psi, 100% duty cycle
• Battery Charge Current: 10‑150 A
• Crank Assist: 300 A, 12/24 V
• Net Dimensions (W × H × L): 20.46 in × 27 in × 51.88 in
• Net Weight: 570 lb (without fuel)
• Warranty: 3 years (Miller True Blue Warranty)

Applications

• Aluminum welding
• Fabrication
• Field and industrial welding
• Construction & heavy equipment projects
