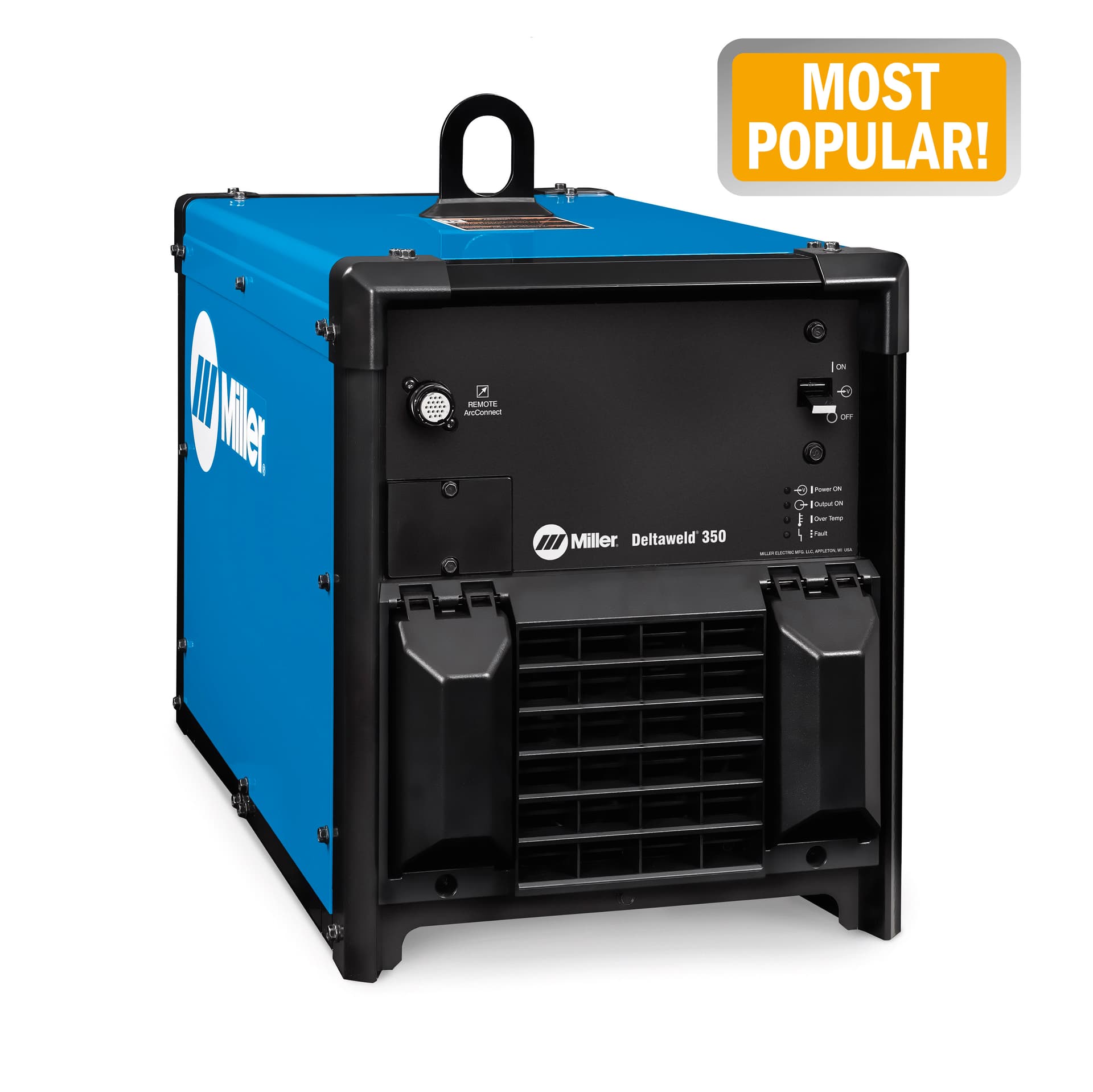

Deltaweld® 350 230/460V With ArcConnect™

The Deltaweld® 350 is a versatile, pulse‑capable MIG welding system that ships as a complete package for manufacturing environments.

Key Features

• Integrated ArcConnect™ communication for point‑of‑use feeder control
• Dedicated Intellx Elite and Pro wire feeders with EZ‑Set for quick setup
• Fan‑On‑Demand™ cooling reduces noise and energy consumption
• Wind Tunnel Technology™ protects internal components for reliability
• Backwards compatible with standard 14‑pin Miller wire feeders
• Optional Insight Centerpoint for production monitoring

Specifications

• Amperage Range: 20 A – 400 A
• Rated Output: 350 A @ 60 % duty cycle
• Input Voltage: 220/230/240 V, 460/480 V (3‑Phase, 60 Hz)
• Max Open Circuit Voltage: 86 VDC
• Net Dimensions (W × H × L): 15.35 in × 22.36 in × 29.15 in
• Net Weight: 115 lb
• Processes: MIG (GMAW), Flux‑Cored (FCAW)

Applications

• Manufacturing and heavy‑equipment fabrication
• Railcar construction
• General steel and stainless‑steel welding
• Production environments requiring pulse‑MIG capability
