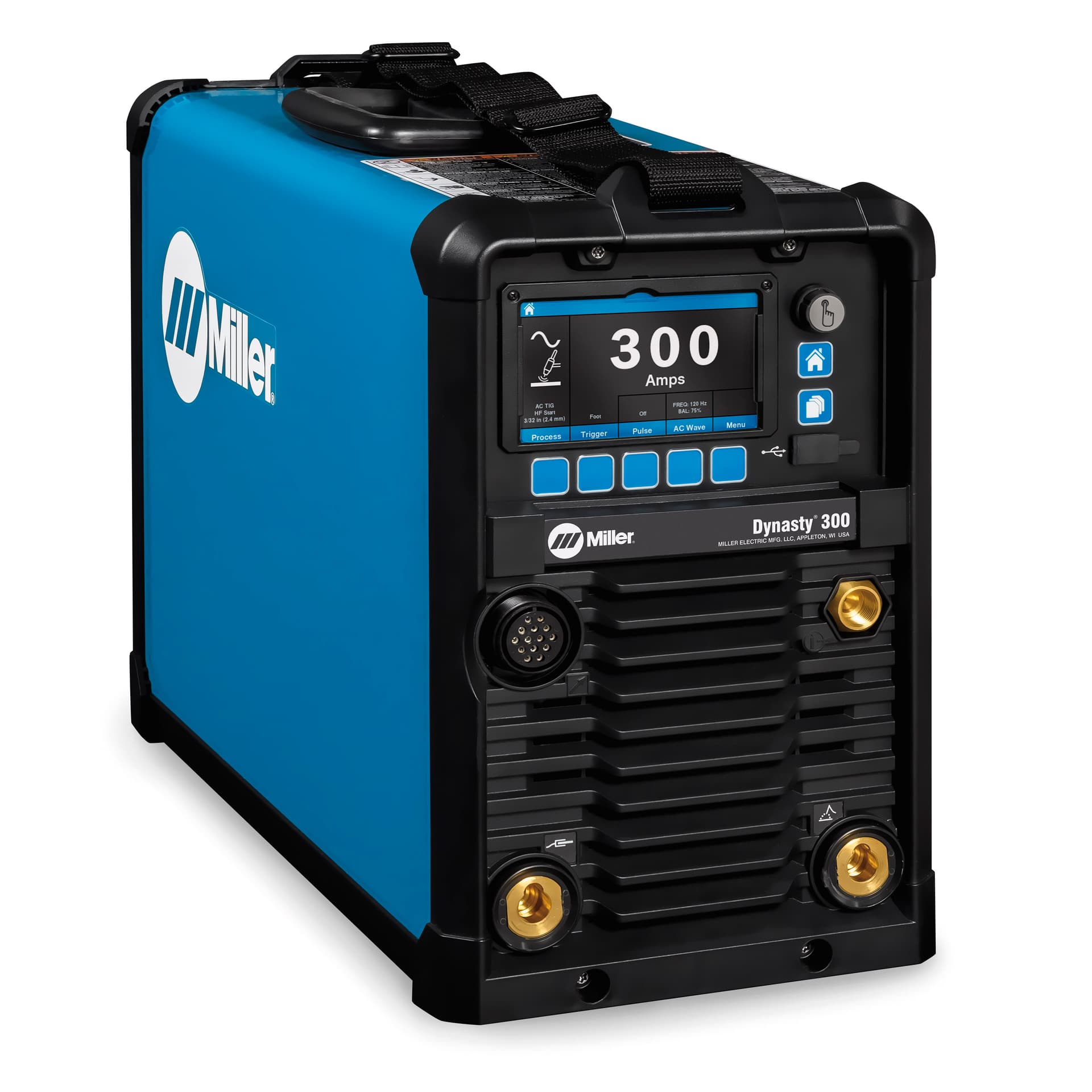

Dynasty® 300 Multiprocess

The Dynasty 300 Series expands beyond industry‑leading TIG and Stick performance with added CV output for MIG capability, making it ideal for shipbuilding, construction, and other demanding applications.

Key Features

• Intuitive LCD interface with on‑screen explanations
• Locks and Limits for weld parameter control
• Program Memory for up to 99 custom weld programs
• Pro‑Set™ for preset controls on balance, frequency, pulse and DIG
• QuietPulse™ for low‑noise DC pulse welding
• USB port for software updates and program transfer
• Auto‑Line™ technology supports 1‑ and 3‑phase input (208‑600 V)
• Stick, TIG, MIG, and multiprocess capabilities with CC/CV output
• Blue Lightning™ high‑frequency arc starter
• Cooler‑On‑Demand™ and Fan‑On‑Demand™ for efficient cooling
• AC Frequency Control (50‑150 Hz)

Specifications

• Input Voltage: 208 V, 220/230/240 V, 380/400 V, 460/480 V, 575/600 V (1‑ and 3‑phase, 50/60 Hz)
• Amperage Range: 1 A – 300 A
• Output Mode: CC/CV
• Input Phase: Single‑phase & Three‑phase
• Net Width: 8.6 in
• Net Height: 13.6 in
• Net Length: 22.5 in
• Net Weight: 55 lb

Applications

• Aluminum welding
• Welding education and training
• Shipbuilding, pipe, construction & fabrication
• General steel, stainless steel, and specialty metal fabrication
