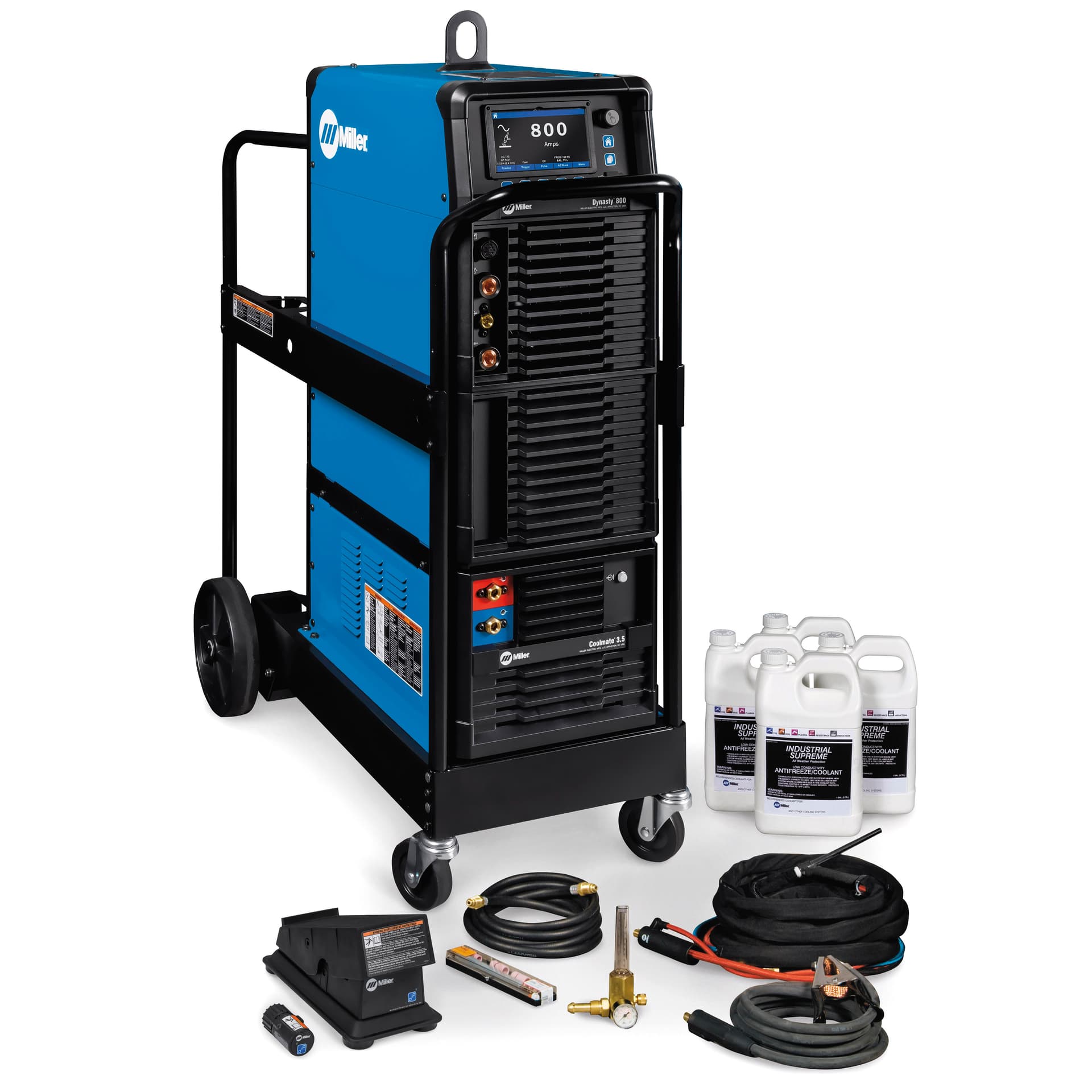

Dynasty® 800 208-600 V, Wireless Foot Control Complete

The Dynasty 800 Series is a powerful, compact power source capable of welding up to 1 in. aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Key Features

• Intuitive LCD interface with on‑screen explanations and dynamic images
• Auto‑Line technology for automatic 208‑600 V input handling (single or three‑phase)
• Blue Lightning™ high‑frequency arc starter for reliable non‑contact starts
• Pro‑Set™ pre‑set controls for balance, frequency, pulse and DIG parameters
• USB port for software updates and program backup
• Integrated Cooler Power Supply (CPS) to power the Coolmate™ 3.5 water‑cooler
• Includes Wireless Foot Control System, Coolmate™ 3.5, Runner Cart, and Weldcraft™ W‑400 torch kit

Specifications

• Input Voltage: 208 V, 220/230/240 V, 380/400 V, 460/480 V, 575/600 V (1‑ and 3‑phase, 50/60 Hz)
• Amperage Range: 5 A – 800 A
• Weight: 320 lb
• Dimensions (W × H × L): 23.1 in × 52.6 in × 41.6 in
• Net Width: 23.1 in, Net Height: 52.6 in, Net Length: 41.6 in
• Current Type: AC / DC
• Welding Modes: CC/DC, CC output
• Materials: Aluminum (0.020 in – 1 in), Steel (0.020 in – 1 in)

Applications

• Advanced welding
• Aluminum welding
• Industrial welding
• Aerospace, heavy equipment, and manufacturing industries
