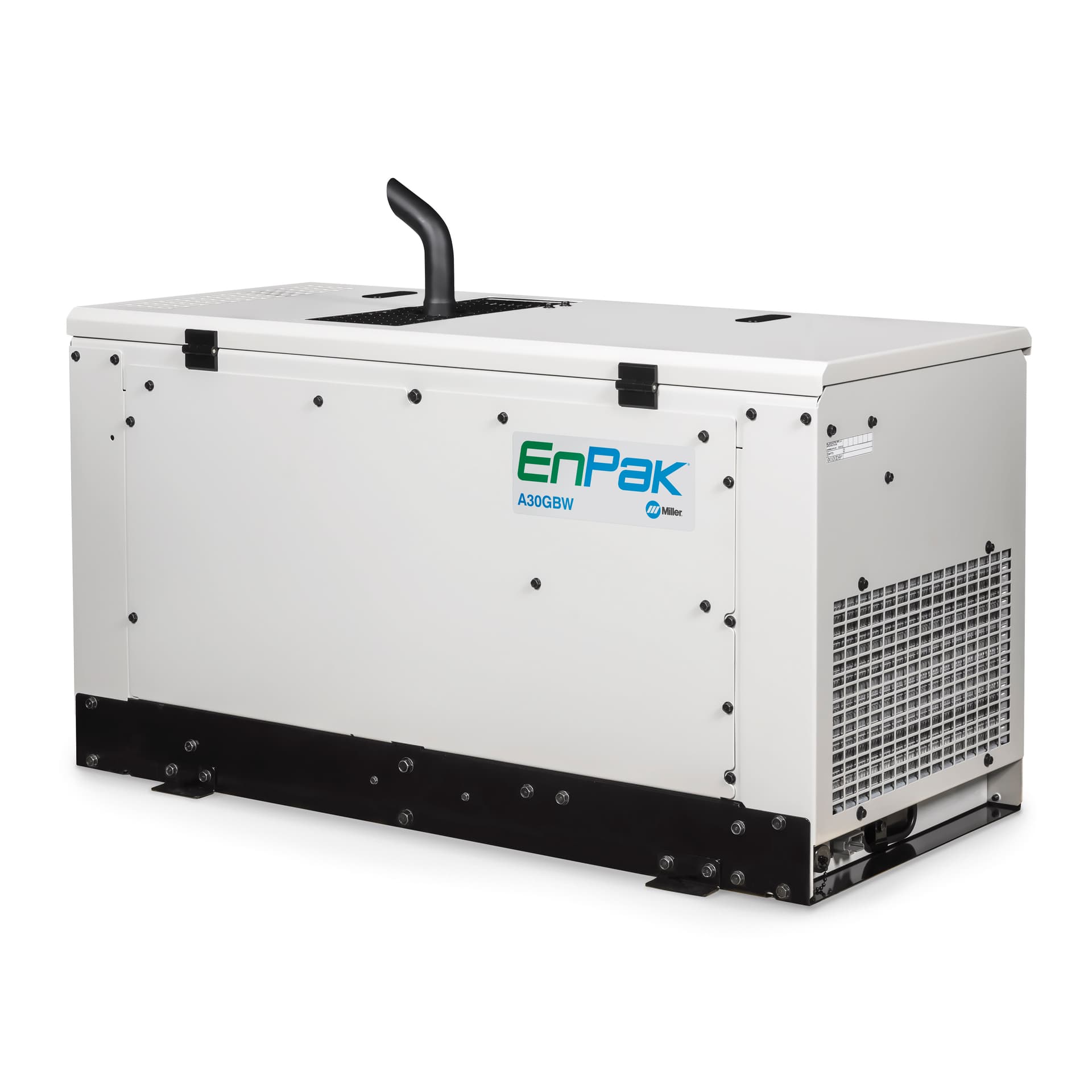

EnPak® A30GBW

EnPak® A30GBW is an engine‑driven all‑in‑one power system designed for work‑truck fleets, delivering quiet, fuel‑efficient compressed air, electric power, battery charging, and welding capabilities in a compact unit.

Key Features

• 30 CFM rotary‑screw compressor powers air tools.
• 6,500 W generator provides 120 V/240 V AC for jobsite tools.
• Up to 100 A battery charge and 300 A crank assist (12/24 V).
• 210 A multiprocess welder (SMAW, GTAW, FCAW, GMAW).
• Auto‑Speed™ technology optimizes engine speed for demand, reducing fuel use and noise.
• Auto Start/Stop, CAN bus connectivity, and remote auxiliary panel options.

Specifications

• Horsepower: 23 hp
• Engine brand: Rehlko (gasoline)
• Engine idle speed: 2400 RPM
• Engine weld speed: 3600 RPM
• Single‑phase auxiliary continuous power: 6500 W
• Single‑phase auxiliary peak power: 8000 W
• Compressor delivery: 30 CFM (0.85 m³/min) at 80‑175 psi
• Compressor duty cycle: 100 %
• Battery charge: 12/24 V, 100 A
• Crank assist: 12/24 V, 300 A
• Chassis power: 12 V, 100 A
• Sound rating: Idle 66 dB / High speed with load 73 dB
• Warranty: 3 Years (True Blue Warranty)

Applications

• Aluminum welding
• General metal repairs on Class 3‑5 work trucks
• On‑site power for tools, lights, and HVAC systems
