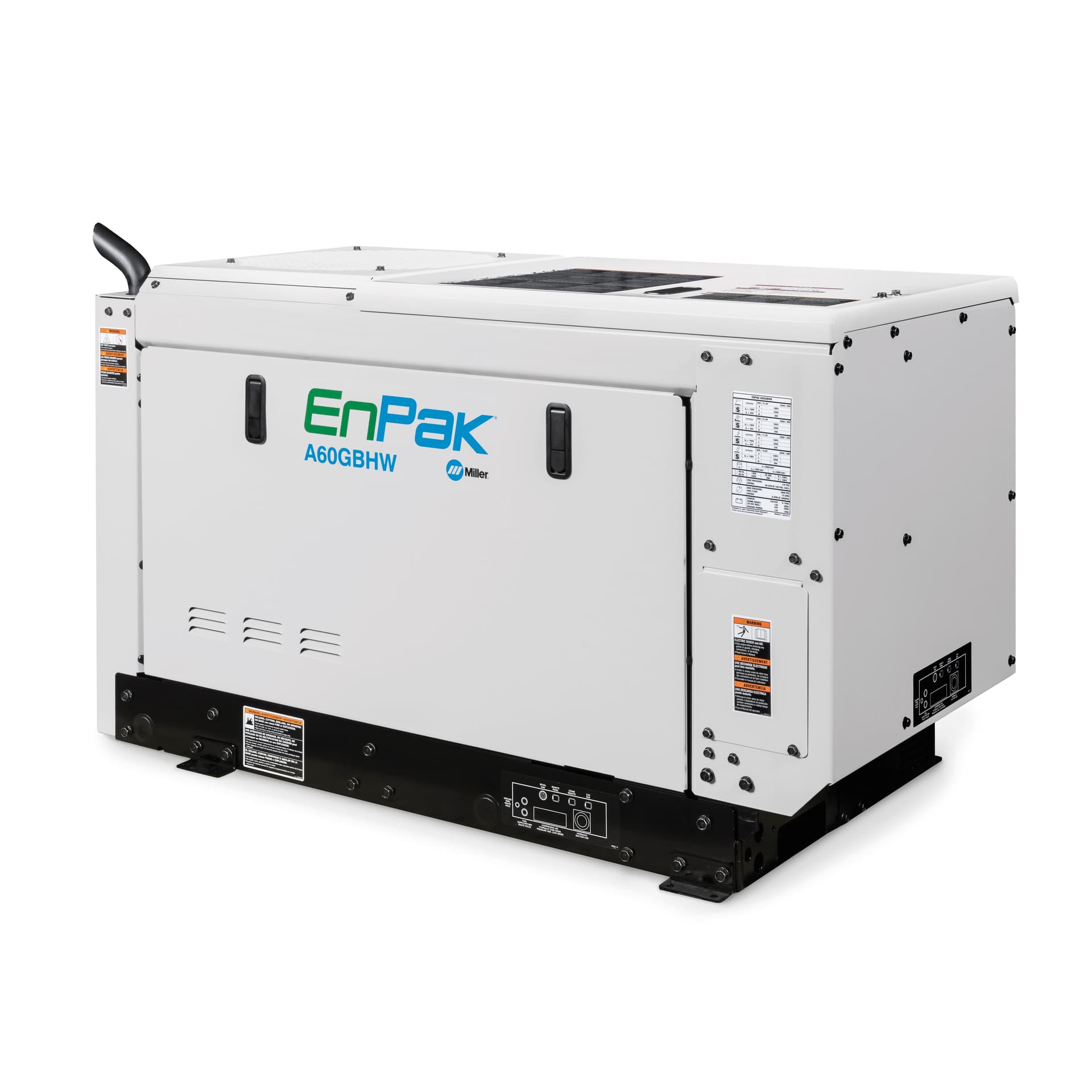

EnPak® A60GBHW

The EnPak® A60GBHW is an all‑in‑one engine‑driven power system designed for work‑truck fleets, delivering 7 kW of auxiliary power, 60 cfm of compressed air and multiprocess welding capabilities in a single compact unit.

Key Features

• 60 cfm rotary‑screw air compressor with 90‑175 psig pressure range
• 7 kW generator with dual 120 V GFCI outlets and a 120/240 V outlet
• Battery charge (150 A) and crank assist (300 A) for 12 V/24 V systems
• Multiprocess welder including MIG, TIG, Stick, FCAW and 325 A carbon‑arc gouging (cold‑weather package only)
• Turbocharged 24.8 hp diesel engine with Auto‑Speed™ and Auto Start/Stop
• Integrated chassis power monitoring and CAN‑bus connectivity
• Optional hydraulic pump (16 gpm, 3 500 psi) for crane operation

Specifications

• horsepower: 24.8 hp
• fuel_type: diesel
• engine_idle_speed: 1800 rpm
• generator_continuous_power: 7000 w
• compressor_cfm: 60
• compressor_pressure: 90‑175 psig
• compressor_duty_cycle: 100 percent
• hydraulic_output: 8.0 gpm at 3000 psi (50 % duty)
• hydraulic_max_pressure: 3500 psi
• battery_charge_current: 150 a
• crank_assist_current: 300 a
• net_weight: 740 lb
• net_dimensions: 46 in L × 21 in W × 27 in H

Applications

• Work truck power and tool integration
• On‑site welding, cutting and gouging
• Hydraulic crane operation on service trucks
• Cab heating and cooling (cold‑weather packages)
• Auxiliary power for jobsite tools and lights
