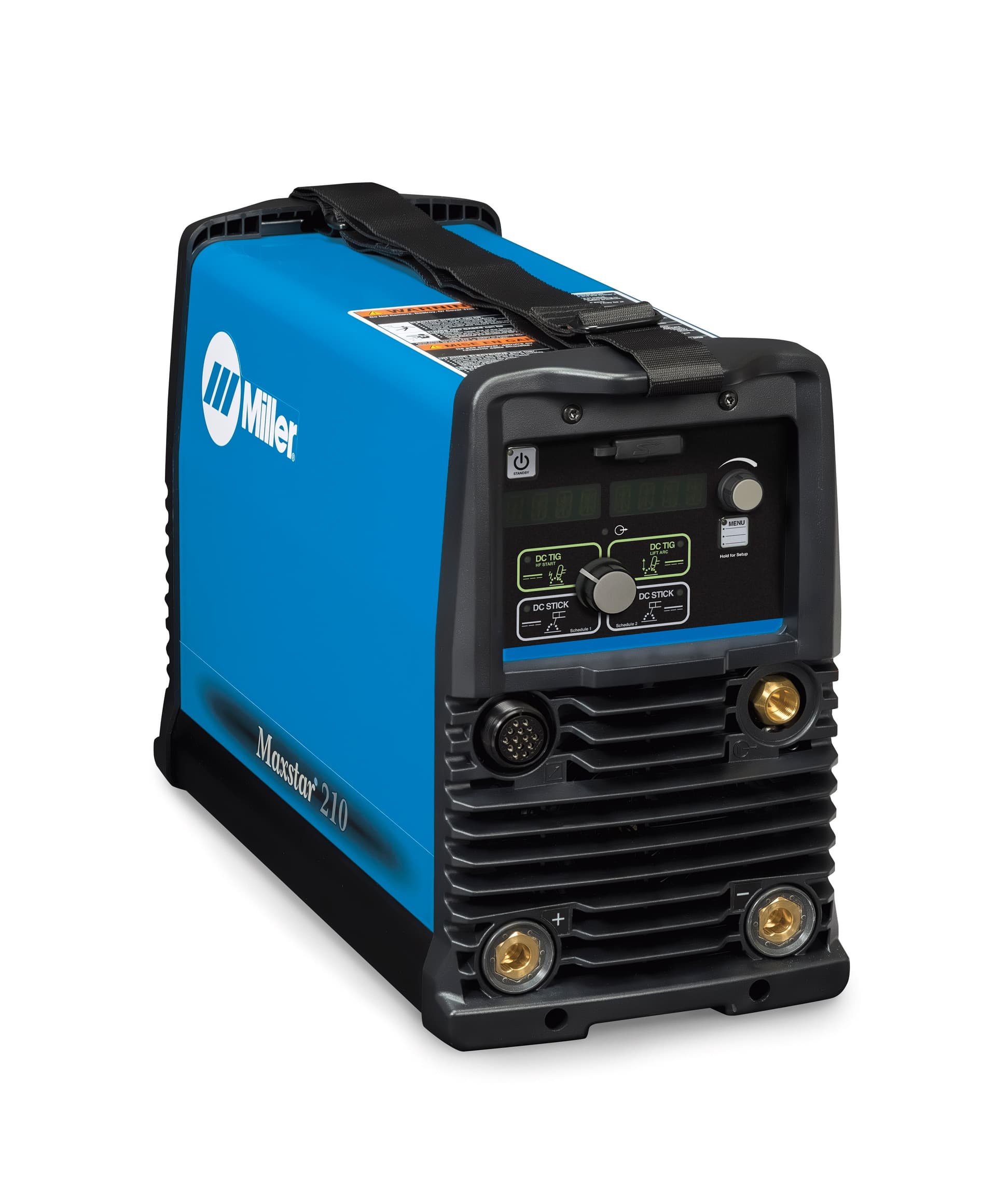

Maxstar® 210 120-480 V

The Maxstar® 210 is a lightweight (38 lb) DC TIG/Stick inverter welder that runs on a wide range of input voltages (120‑480 V) and offers advanced features such as QuietPulse™, Pro‑Set™, and Auto‑Line™.

Key Features

• QuietPulse™ technology for ultra‑quiet pulse welding
• Pro‑Set™ for easy pre‑set welding parameters
• Auto‑Line™ automatic voltage selection (single‑ or three‑phase)
• Blue Lightning™ high‑frequency arc start
• Hot Start™ for reliable arc ignition
• Expandable via front‑panel memory card
• Base and DX models (DX adds extended sequencer, trigger options, pre‑flow and pulser functions)

Specifications

• Input Voltage: 110/115/120 V, 208 V, 220/230/240 V, 380/400 V, 460/480 V (1‑ and 3‑phase, 50/60 Hz)
• Amperage Range: 1 A – 210 A (DC)
• Max Open‑Circuit Voltage: 80 VDC
• Output Type: Constant Current (CC)
• Weight: 38 lb
• Dimensions (Net): 8.6 in (W) × 13.6 in (H) × 19.5 in (L)
• Portable with handles, optional cart, and adjustable shoulder strap

Applications

• Shipbuilding, construction & fabrication
• TIG (GTAW) and Stick (SMAW) welding of steel, stainless steel, and specialty metals
• Material thickness from 0.002 in (0.05 mm) up to 1/4 in (6.4 mm)
• Suitable for both manual and automated welding setups
