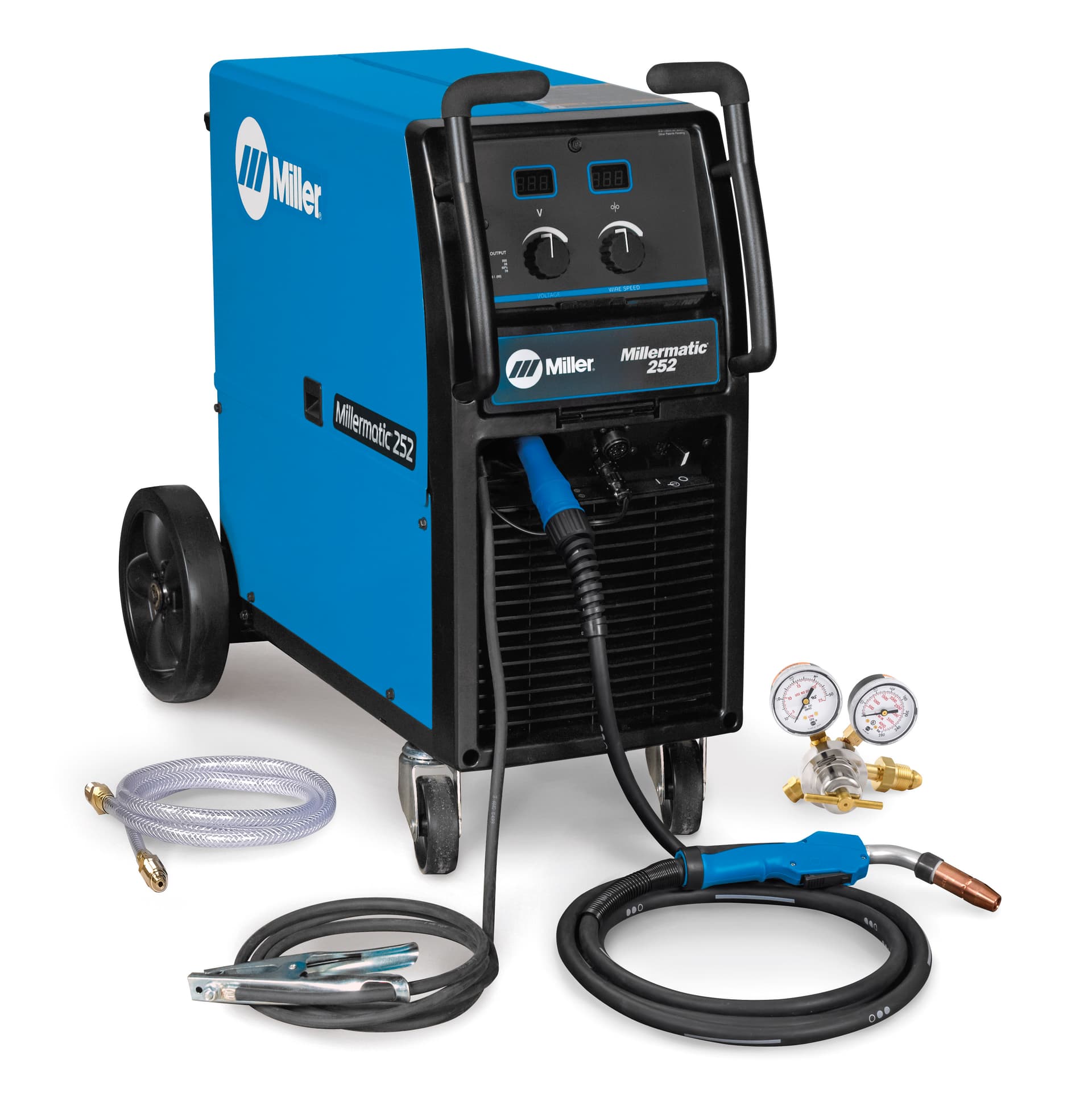

Millermatic® 252 MIG Welder - 200(208)/230V

The Millermatic® 252 is a time‑tested, durable MIG welder with a classic interface that’s designed for simplicity and easy use. Ideal for fabrication, manufacturing and farm projects, it delivers reliable performance on steel, stainless and aluminum.

Key Features

• Large digital front panel with built‑in timers for voltage, wire feed speed, run‑in, pre/post‑flow, burn‑back and stitch.
• Auto Gun Detect™ automatically recalls settings for MIG, spool or push‑pull guns.
• Push‑Pull gun direct‑connect compatibility with Spoolmate 200 Series.
• Angled, dual‑gear driven cast aluminum drive system with reversible, no‑tool change rolls.
• EZ‑Change™ Low Cylinder Rack for effortless cylinder handling.
• EZ‑Access™ consumable compartment with flip‑down parameter chart.

Specifications

• Input Voltage: 208 V / 220 V / 230 V / 240 V (single‑phase, 60 Hz)
• Amperage Range: 30 A – 300 A
• Wire Feed Speed: 1.3 m/min – 17.8 m/min (50 IPM – 700 IPM)
• Duty Cycle: 200 A @ 24 VDC – 60 %, 250 A @ 26.5 VDC – 40 %
• Weight: 205 lb
• Dimensions (Net): 19 in W × 30 in H × 40 in L

Applications

• Automotive welding
• Welding education and training
• General fabrication projects
• Farm and ranch metal work
• Manufacturing and custom restoration
