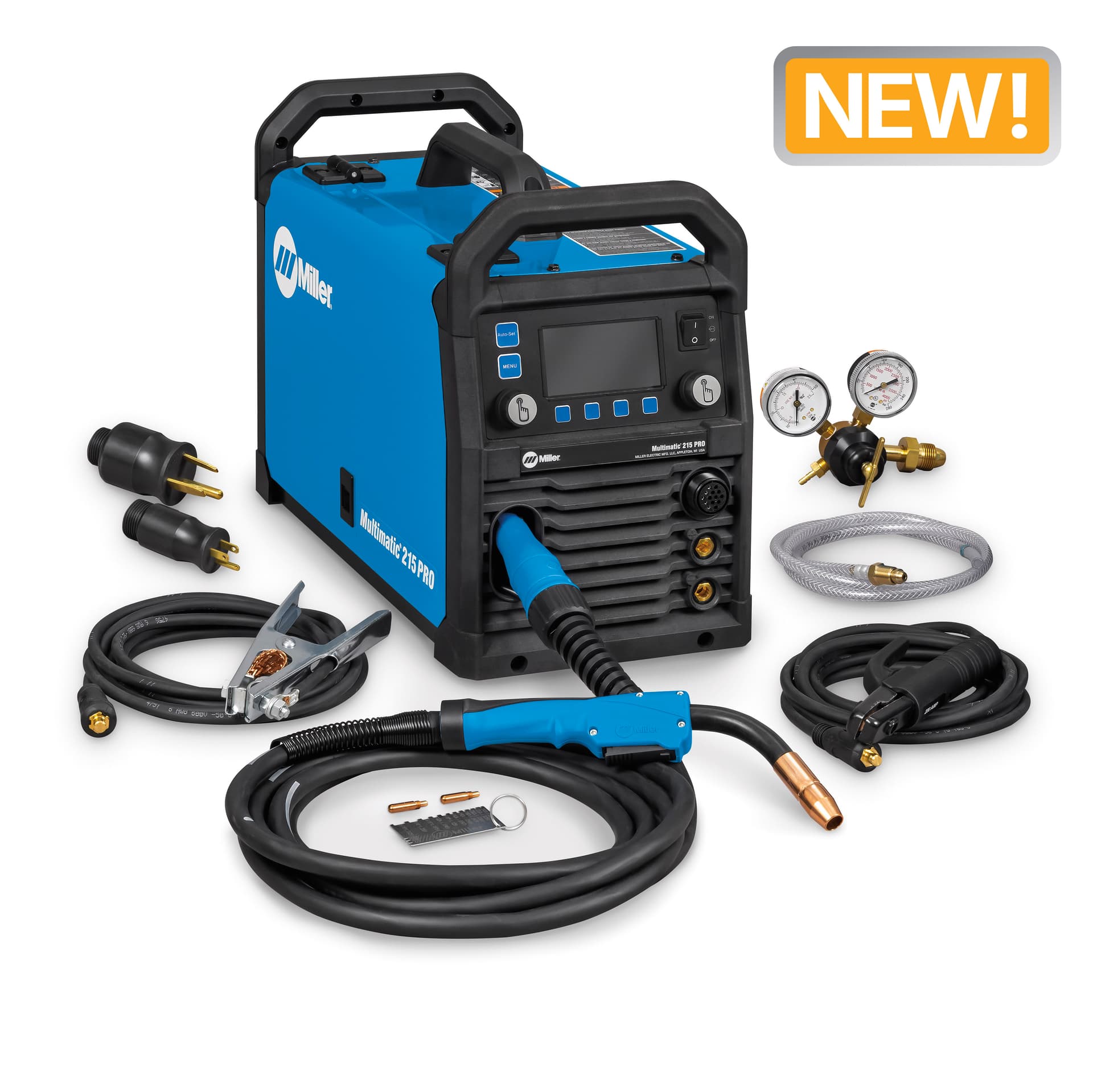

Multimatic® 215 PRO Multiprocess Welder

The Multimatic® 215 PRO is a versatile 120/240 V multiprocess welder capable of MIG, flux‑cored, DC stick and DC TIG welding, delivering up to 3/8" steel and aluminum thickness. It features USB‑enabled software upgrades, Auto‑Set™ technology, a 15‑ft MIG gun, and higher duty cycle for all‑day productivity.

Key Features

• Multiprocess capabilities: MIG, flux‑cored, DC stick, DC TIG
• Auto‑Set™ predefined weld settings for ease of use
• USB‑upgradeable software and firmware updates
• Smooth‑Start™ for spatter‑free starts
• Multi‑voltage plug (MVP™) for 120 V or 240 V operation without tools
• Angled drive system with Quick Select™ drive roll supporting solid and flux‑cored wires
• 15‑ft. MDX™‑100 MIG gun with Dinse‑style connector
• Generator compatible (8 kW+ generators)
• Auto Spool Gun Detect™
• Higher duty cycle and built‑in 35‑lb portability

Specifications

• Input Voltage: 120/240 V, 1‑Phase, 50/60 Hz
• Amperage Range: 20 A – 230 A
• Wire Feed Speed: 1.5 m/min – 15.2 m/min (60‑600 IPM)
• Max Open Circuit Voltage: 57 VDC
• Weight: 35 lb (approx.)
• Dimensions (W×H×L): 9.75" × 14.625" × 20"
• Warranty: 3 Years (Miller True Blue Warranty)

Applications

• Automotive welding & car restoration
• General fabrication and garage/shop projects
• Mobile fabrication & MRO
• Welding education and training
• Various welding projects across multiple industries
