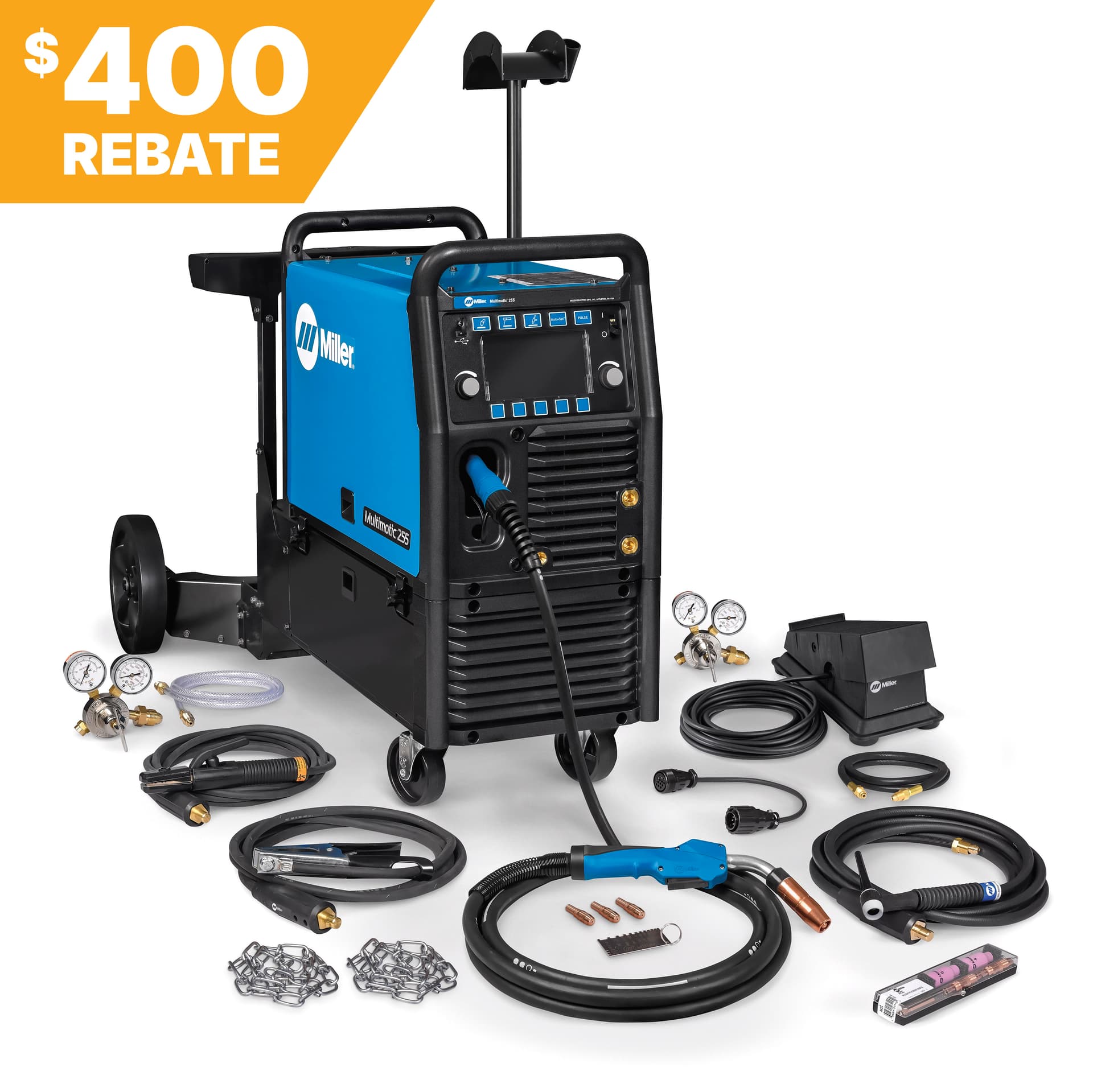

Multimatic® 255 Multiprocess Welder w/ EZ-Latch™ Dual Cylinder Running Gear & TIG Kit - 208-575V

The Multimatic 255 is a compact, multiprocess welder that delivers MIG, DC TIG, stick, and flux‑cored capabilities for professional manufacturing, fabrication, and education environments.

Key Features

• 7‑inch color LCD for easy setup and parameter selection
• EZ‑Latch™ dual‑cylinder running gear with elevated gun and cable rack
• MDX‑250 MIG gun with AccuLock™ S consumables (15 ft.)
• Program mode for saving and recalling weld settings
• USB port for software updates and program transfer
• Portable design (84 lb) and generator‑compatible
• Includes TIG kit and dual‑cylinder cart package

Specifications

• Input Voltage: 208 V / 220 V / 230 V / 240 V / 460 V / 480 V / 575 V (1‑phase, 50/60 Hz)
• Amperage Range: 5 A – 350 A (max 275 A stick at 10 % duty)
• Wire Feed Speed: Not specified
• Duty Cycle: Not specified
• Weight: 84 lb (machine only)
• Dimensions: Not specified
• Current Type: DC (CC/CV)
• Max Open Circuit Voltage: 81 VDC
• Welding Modes: MIG, Pulsed MIG, Stick (6010), Flux‑cored, DC Lift‑Arc TIG, DC Pulsed TIG

Applications

• Aluminum welding
• Automotive welding
• General fabrication
• Mobile fabrication & MRO
• Welding education and training
