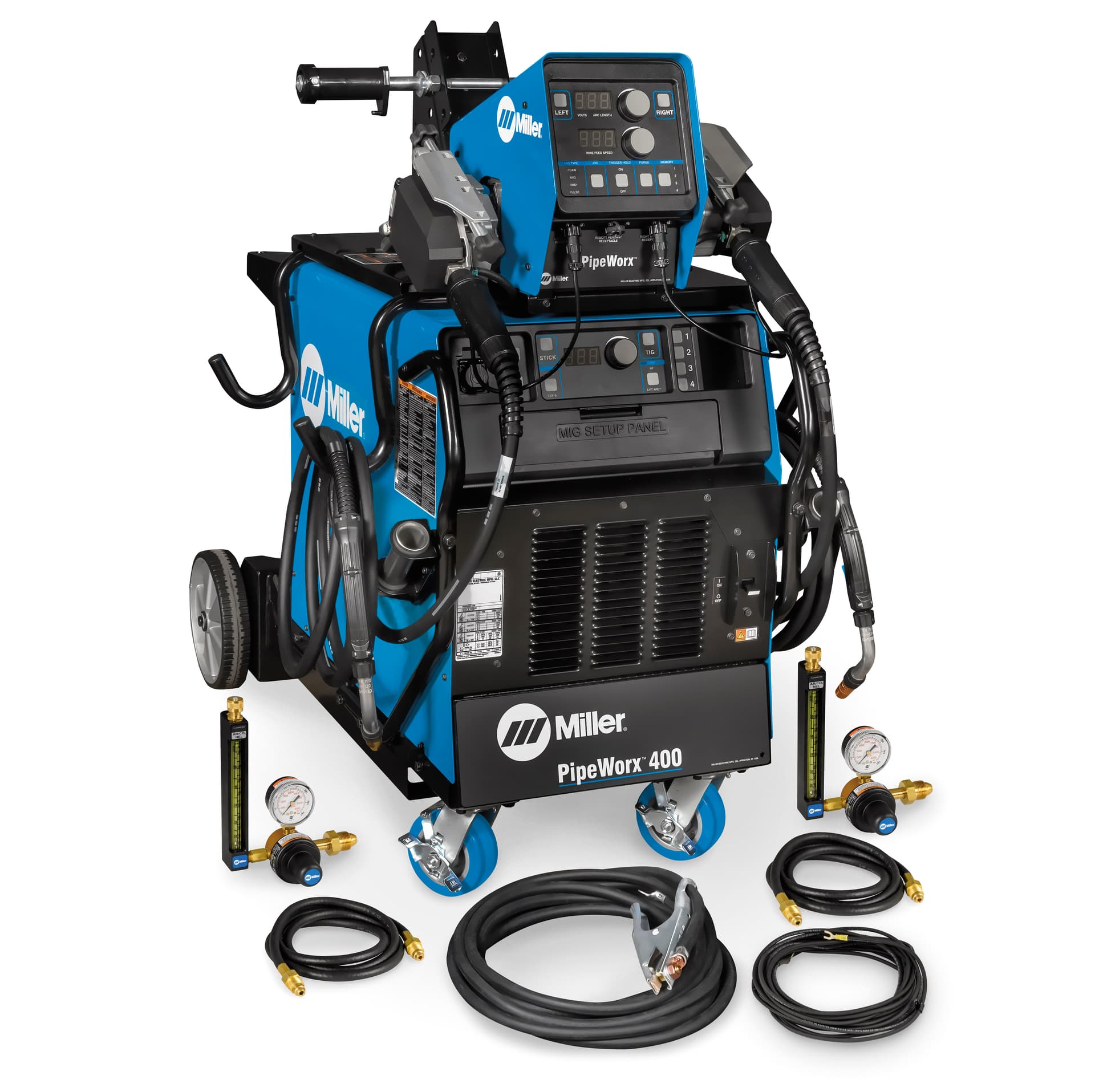

PipeWorx 400 Welding System Package 230/460V

The PipeWorx 400 Welding System Package is a multiprocess solution optimized for pipe fabrication shops, offering one‑touch welding, quick process changeover, and advanced Pulsed and Modified Short‑Arc MIG processes.

Key Features

• Simple process setup with backlit, memory‑storable controls for Stick, DC TIG, and MIG.
• Quick‑Select technology for instant process, polarity, and cable configuration changes.
• Multiprocess capability: Stick, DC TIG, Flux‑Cored, MIG, RMD®, and Pulsed MIG.
• Streamlined system with Wind Tunnel Technology™ and Fan‑On‑Demand™ for dusty shop environments.
• Integrated cable and gun storage to keep the weld cell organized.

Specifications

• Amperage Range: 40 A – 400 A
• Input Voltage: 220/230/240 V, 460/480 V (3‑Phase)
• Input Frequency: 50/60 Hz
• Rated Carbon Diameter: 5/16 in (7.9 mm)
• Max Open Circuit Voltage: 90 VDC
• Welding Mode / Output: CC/CV

Applications

• Fabrication
• Industrial Welding
• Pressure Vessel
• Process Pipe
• Refineries and Power Plants
• Welding Education and Training
