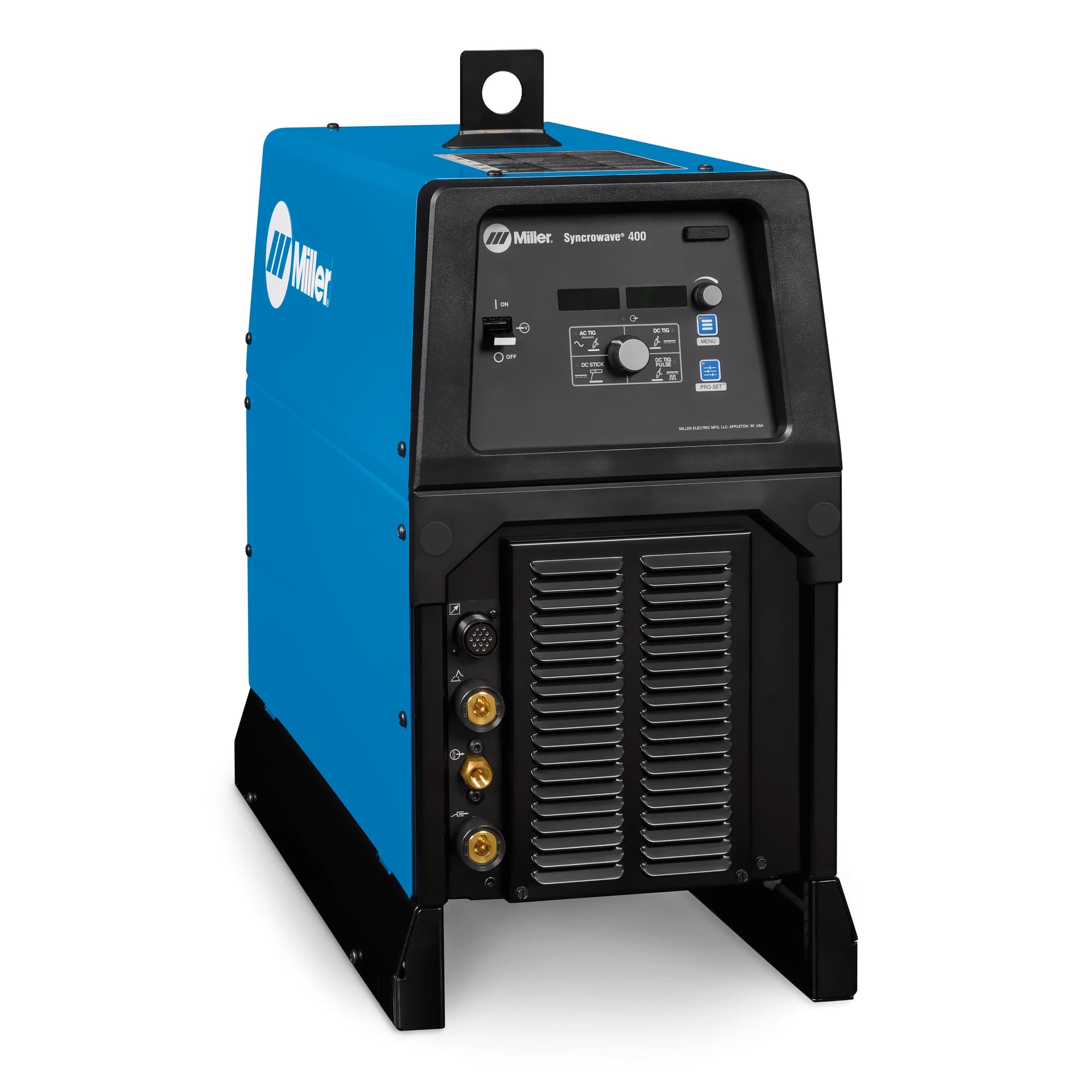

Syncrowave® 400 - Machine Only

The Syncrowave® 400 Machine Only is an energy‑efficient TIG welding power source designed for fabricators who need high productivity and lower operating costs.

Key Features

• Intuitive user interface for easy parameter adjustments
• Pro‑Set™ feature for pre‑set controls on balance, frequency, pulse and DIG
• Auto‑Link automatically matches input voltage (208 V, 220/230/240 V, 460/480 V)
• AC Frequency Control (50‑150 Hz) for improved arc control
• Accepts single‑ or three‑phase power
• Smaller footprint and lighter weight for easier mobility
• Up to 28 % energy savings vs. older equipment
• Stable arc performance with better start characteristics

Specifications

• Input Voltage: 208 V, 220/230/240 V, 460/480 V (single‑ or three‑phase, 50/60 Hz)
• Amperage Range: 5 A – 400 A
• Net Dimensions (W × H × L): 15 in × 29.375 in × 24.625 in
• Net Weight: 131 lb
• Max Open Circuit Voltage: 70 VDC
• Current Type: AC / DC
• Warranty: 3 Years (Miller’s True Blue Warranty)

Applications

• Manufacturing and fabrication of aluminum, stainless steel, and carbon steel
• Production environments requiring high duty‑cycle TIG welding
• Shop settings where space and energy efficiency are critical
