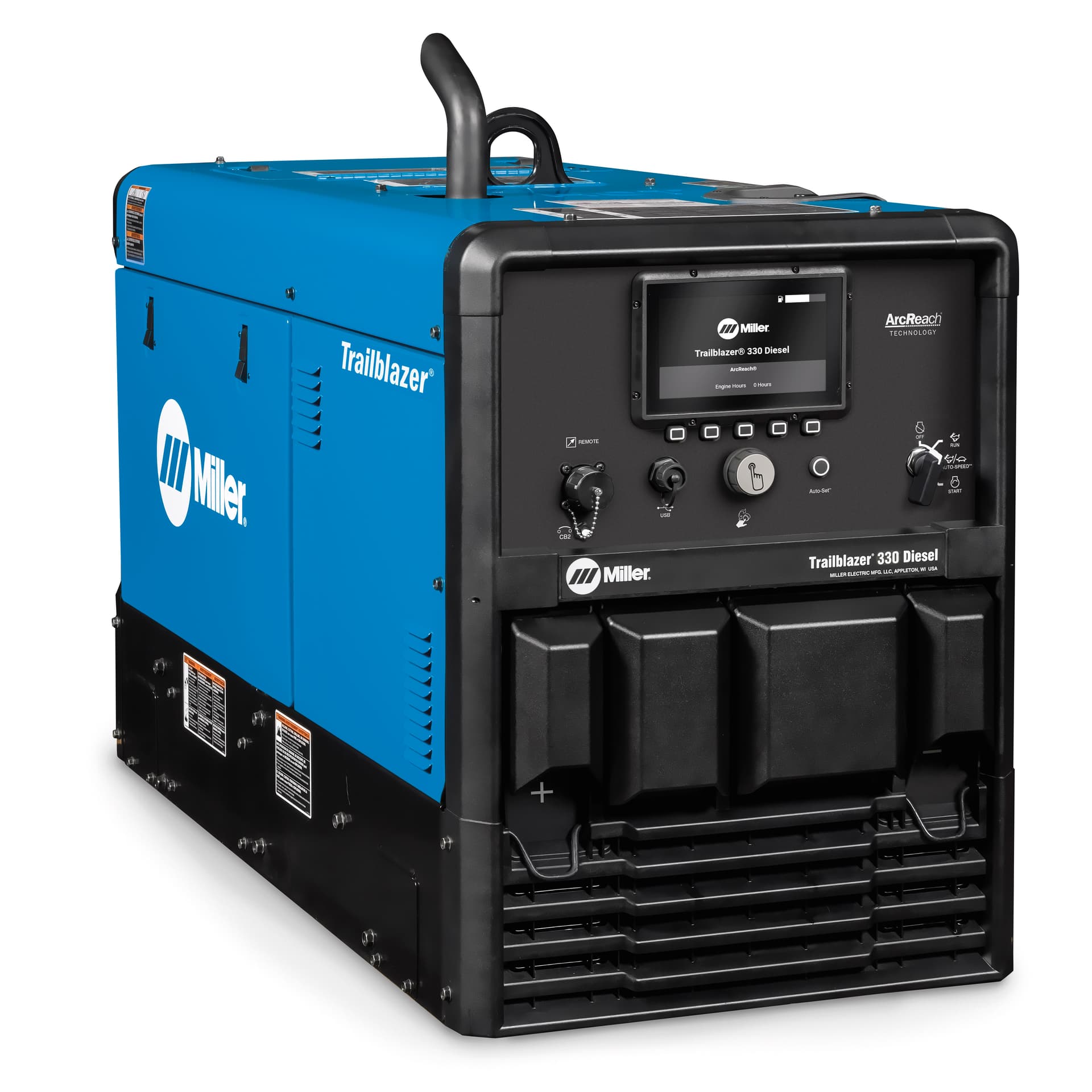

Trailblazer® 330 Diesel (Kubota) w/Excel™ Power

The Trailblazer® 330 Diesel with Excel™ Power is a compact, engine‑driven welder delivering 330 A of output with full auxiliary power at any setting. It features advanced Auto‑Speed™ technology, optional Excel™ power for 120 V tools, and industry‑leading arc performance.

Key Features

• Digital interface for easy setup
• Exceptional arc performance with easy starts and low spatter
• Auto‑Speed™ technology automatically adjusts engine speed for fuel efficiency and reduced noise
• Separate weld and auxiliary power (up to 12 kW peak)
• ArcReach® technology puts amperage and voltage control at the operator’s fingertips
• Optional Excel™ power provides 2 400 W (20 A) of pure sine‑wave power at idle
• QuietPulse™ reduces audible noise during DC pulse welding

Specifications

• Amperage Range: 20 A – 330 A
• Fuel Type: Diesel (11 gal tank)
• Horsepower: 24.8 hp
• Auxiliary Power: 10 500 W continuous / 12 000 W peak
• Engine Brand: Kubota®
• Weight: 610 lb (net)
• Dimensions (H × W × D): 32.41 in × 20.6 in × 45.72 in (top of exhaust to base)
• Sound Rating: 74.7 dB idle / 80.2 dB max weld
• Warranty: 3 years (True Blue Warranty)

Applications

• Aluminum welding
• General fabrication
• Field and industrial welding
• Mobile fabrication & MRO
• Structural welding
