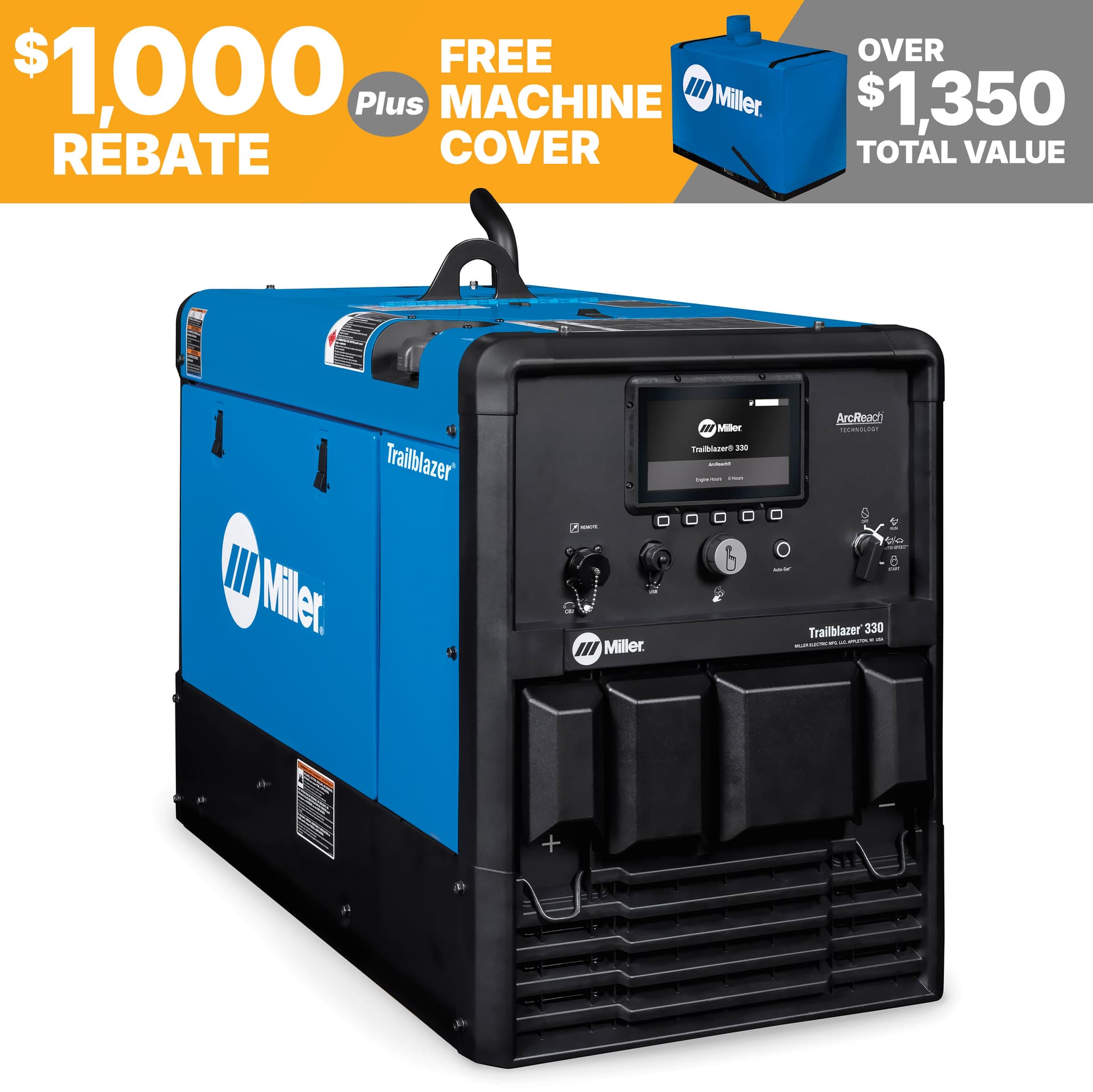

Trailblazer® 330 (Rehlko)

The Trailblazer® 330 (Rehlko) is an engine‑driven welder delivering industry‑leading arc performance and superior fuel efficiency for mobile fabrication and construction jobs.

Key Features

• Easy to Use – digital interface speeds setup.
• Exceptional Arc Performance – easy arc starts, less spatter.
• Easy Maintenance – intuitive daily maintenance.
• Easier mobility – over 80 lb lighter and 13 % smaller than previous models.
• Auto‑Speed™ technology – adjusts engine speed to match weld and charge demands.
• Separate weld and auxiliary power – full auxiliary power at any setting.
• ArcReach® Technology – process adjustment commands from weld cables.
• QuietPulse™ – reduced audible noise during DC pulse welding.
• Dynamic DIG™ – time‑based short‑clearing current for smoother arcs.

Specifications

• Amperage Range: 20 A – 330 A
• Max Open Circuit Voltage: 107 VDC
• Input Voltage: 120 V (single phase)
• Fuel Type: Gasoline (11 gal tank)
• Horsepower: 23.5 hp (Rehlko engine)
• Weight: 400 lb
• Dimensions (W × H × L): 20.13 in × 26.5 in × 37.06 in
• Continuous Auxiliary Power: 10,500 W
• Peak Auxiliary Power: 12,000 W
• Sound Rating: 65 dB idle / 73.5 dB max weld

Applications

• Aluminum Welding
• Fabrication
• Mobile Fabrication & MRO
• Structural Welding
